We really like the Hyperlink. It is our go to travel kite and foiling kite. It packs small, weighs nothing, and is great fun on the twintip or the foil. Take a 9m and a foil and you will be out if there is any breeze. Once its a bit windy to foil, grab your twintip and go boost.

From Ozone:

The Hyperlink is a true multipurpose foil kite, bridging the gap between inflatables and foils - dynamic and engaging to ride with high performance characteristics. The third version brings a new feeling of performance and covers almost every aspect of Kiting. Free ride, hydrofoil, boost and float, air style or unhooked, backcountry snow missions, you name it and it delivers!

We have completely re-designed the third version incorporating new technology developed during the design process of our high performance race winning R1 V4 and Chrono V4.

A new plan-form, bridle line layout, internal structure, Transverse Sail Shaping and increased cell count make the Hyperlink V3 more dynamic to fly, sitting further forward in the wind window with increased drive upwind and less physical to ride than the V2. Additionally, the bar pressure has been reduced with the option to increase or decrease by simply adjusting the Brake Line Settings.

These new design features and performance attributes make the Hyperlink V3 feel lighter and more playful in the air. Handling and power generation through turns is where it excels making it a fun kite for active flying when the conditions are light.
The upper wind range also has been massively increased to be comparable with a similar size inflatable kite. The increased handling, lighter bar pressure and power generation through the turns make it the dream snowkite, you can ride all day without fatigue.

The Hyperlink V3 features a durable, airtight and lightweight double rip-stop Nylon material for the upper and lower surfaces. The material has a unique formulated coating to help shed water, improving flying characteristics and water re-launch.

Internal span-wise straps work in unison with optimized diagonal ribs, distributing load from the bridles evenly and effectively. This increases the internal structural balance, while allowing the top and bottom surfaces to maintain the designed profile without being distorted from indirect tension or loads.

The Leading Edge now features Transverse Sail Shaping creating a cleaner surface on the most important area of the aerofoil. The result is less turbulent airflow and longer skin adhesion, which positively effects the lift to drag ratio increasing overall performance.

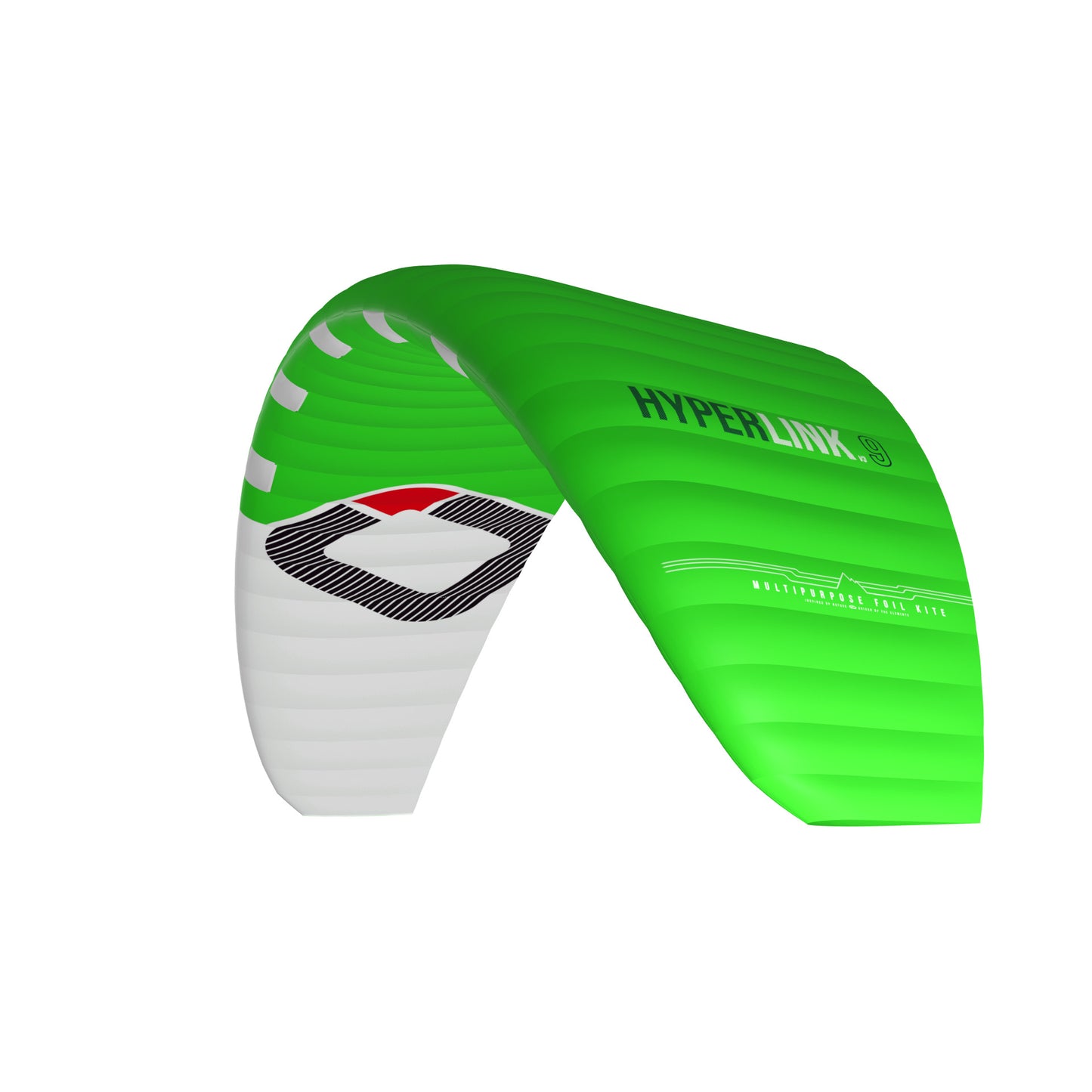

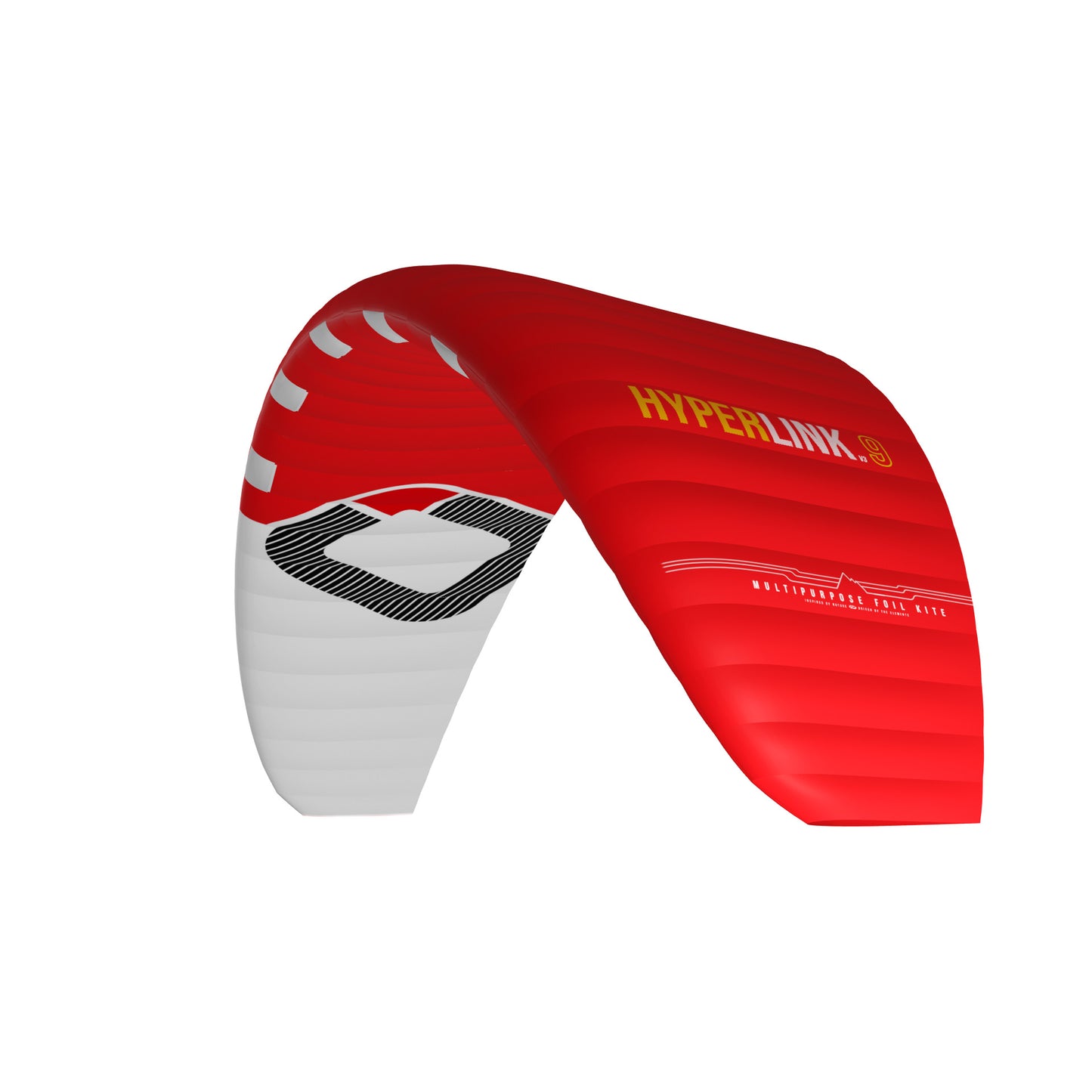

The Hyperlink is available in 5, 7m, 9m, 11m, and 13m, in 3 colour schemes. Custom colours are also available.

Brake Line Settings

Three settings allow you to fine tune kite feedback and bar pressure to your liking. It is quick and easy to change with no extra lines to add or remove.

1. Hydro foil - Decreases bar pressure with a longer lifting period perfect for foiling manoeuvres. The Hydro Foil setting is the upper knot on the PB1 line.
2. All-round - The ideal balance in performance and feeling for most riders and conditions. The All-round setting is the middle knot on the PB1 line (factory setting).
3. Twin Tip - Increases bar pressure and offers a sharper, more direct feeling perfect for Twin Tip riding. If you prefer a heavier and direct feel this could be the setting for you. The Twin Tip setting is the lower knot on the PB1 line.

Flying Line recommendations

We recommend 23m lines for 45cm and 50cm bar widths (kite sizes 5m, 7m, 9m, 11m) and 25m lines for 55cm bar width (kite size 13m). For Hydro-foiling shorter lines (10m to 21m) are preferred by a wide range of users. You will feel an increased ‘connection’ to the kite, it will become more responsive and direct. In stronger winds with shorter lines the upwind ability will be enhanced significantly.

4- LINE CLOSED CELL versus 5-LINE OPEN CELL

Watch the how-to video to ensure you understand the correct method to change between 4-Line Closed Cell and 5-Line Open Cell modes.

4-Line Closed Cell Mode

The Hyperlink comes standard in 4-Line Closed Cell Mode, utilising our Front Line Flag Out Release System. This is recommended for water use – it is a simple and effective flag out when the Quick Release is activated – it works the same way as our 4-line inflatable water kite range.

• 4 Line Closed Cell Mode is recommended when riding on water.
• Inflation is quick and smooth after pre-inflating the kite.
• If you are already an inflatable kite rider it will only take you one session to get to know the Hyperlink.
• For twin tip riders once the kite is in the air and powered up the similarities to an inflatable kite can be felt.
• It has progressive handling, generates smooth consistent power, great upwind performance and jumps well with long hang time and smooth landings.
• Ideal for Foil Board riding, the Hyperlink produces more power than an inflatable kite size per size – this means you can use a smaller more manoeuvrable kite to generate power.
• Manoeuvres are made easy thanks to the stability and lift produced as the Hyperlink flies through the zenith – a great help when learning to tack and gybe giving you time and float to change board direction.
• In light winds the Hyperlink will fly above you unlike inflatable kites that have a tendency to fall out of the sky. This makes getting set up for starting stress free.

5-Line Open Cell Mode

The optional 5-Line Internal Re-Ride Release System Conversion Kit is recommended for snow or land use. The Internal Re-Ride Release System de-powers the kite instantly without tangling, and falls to the ground to re-launch when ready.

• 5-Line Open Cell Mode is recommended when riding on snow or land.
• Similar inflation as in Closed Cell Mode, slightly quicker due to the valves being open.
• Snow and land riding are a blast, the easy inflation and Internal Re-Ride Release System means it can be taken anywhere safely.
• The Hyperlink combines the perfect balance of handling, pop and float to make the most of terrain and flats.

Technology

• Exceptional Ozone Factory construction - World-class construction in our own factory, using the highest quality materials and hand checked Quality Control at every step. The Ozone factory also manufactures our Paragliding and Speed Wing range; the same Quality Control processes are used across all products.
• High Performance Ultralight Materials - High quality Ultra Light materials have been used extensively on our Kites and Paragliders since 2011. Using Ultra Light materials translates to true performance increases - the kite inflates quicker, flies faster and is more reactive even in the lightest breeze.
• 4-line Closed Cell and 5-line Open Cell modes - The Hyperlink comes standard in 4-Line Closed Cell Mode, utilising our Front Line Flag Out Release System. This is recommended for water use – it is a simple and effective flag out when the Quick Release is activated – it works the same way as our 4-line inflatable water kite range.
  The optional 5-Line Internal Re-Ride Release System Conversion Kit is recommended for snow or land use. The Internal Re-Ride Release System de-powers the kite instantly without tangling, and falls to the ground to re-launch when ready.
• Transverse Sail Shaping - The Leading Edge now features Transverse Sail Shaping creating a cleaner surface on the most important area of the aerofoil. The result is less turbulent airflow and longer skin adhesion, which positively effects the lift to drag ratio increasing overall performance.
• Internal Diagonals and Straps - Internal span-wise straps work in unison with optimized diagonal ribs, distributing load from the bridles evenly and effectively. This increases the internal structural balance, while allowing the top and bottom surfaces to maintain the designed profile without being distorted from indirect tension or loads.
• Waterproof deflation zip - Intelligently positioned for easy deflation and pack down.
• Comparable feeling throughout the size range - We work extensively during our R&D process on each and every kite to develop a range of sizes that feel in tune with each other.
• Designed with OzCAD - The FUTURE is NOW - All Ozone kites are designed and developed using our own highly advanced custom built CAD software. Our designers are able to work with parameters specifically formulated to calculate unique aspects required in technical Inflatable and Foil kites. Part of our design team is dedicated to the upgrade of the CAD code and addition of new modules and features to the program as the development of our kites continues.
• Innovative Inflate Valves - The Hyperlink can be easily converted between 4-Line Closed Cell and 5-Line Open Cell modes using our innovative inflate valve.
• L.E Profile Reinforcements - The Leading Edge is reinforced with flexible lightweight plastic battens to maintain the shape of the profile during angle of attack changes and turbulent airflow. This drastically improves overall performance as the foil remains true to the designed shape.
• Sheathed Dyneema bridle lines – High quality, low stretch sheathed Dyneema bridle lines for maximum strength and performance. This is the same bridle line we have used on our Snowkite range for the past 10 years.
• Double Pulley System - Using high spec low friction Ronstan Orbit pulleys to reduce wear and rider fatigue while improve feeling and performance of the kite.
• Water Drainage Channels – An internal channel is shaped into the end of each cell along the trailing edge. This allows loose sand or water to run between the cells and out of the tips during flight. The Velcro sealed cells at the tips can be opened for cleaning the kite. Always clean your kite by emptying any water, sand or dirt as this will prolong the life of the kite and help it fly as designed.
• Fool proof line connectors - Fool proof numbered line connectors prevent incorrect rigging of the flying lines to the kite.

Specifications

Kite Size	5m	7m	9m	11m	13m
Weight (KG)	1.1	1.2	1.5	1.8	2.1
Bar Size (cm)	45	45	50	50	55
Number of cells	29	29	33	33	33
Projected area (M2)	4	5.6	7.27	8.93	10.43
Projected aspect ratio	3.45	3.45	3.61	3.61	3.61
Flat aspect ratio	4.81	4.81	5.05	5.05	5.05
Root Chord (mm)	1230	1450	1625	1800	1920
Span (mm)	4900	5777	6742	7470	8200

Wind Range

Package Contents

Kite Only - Kite, Bag, Repair pack
