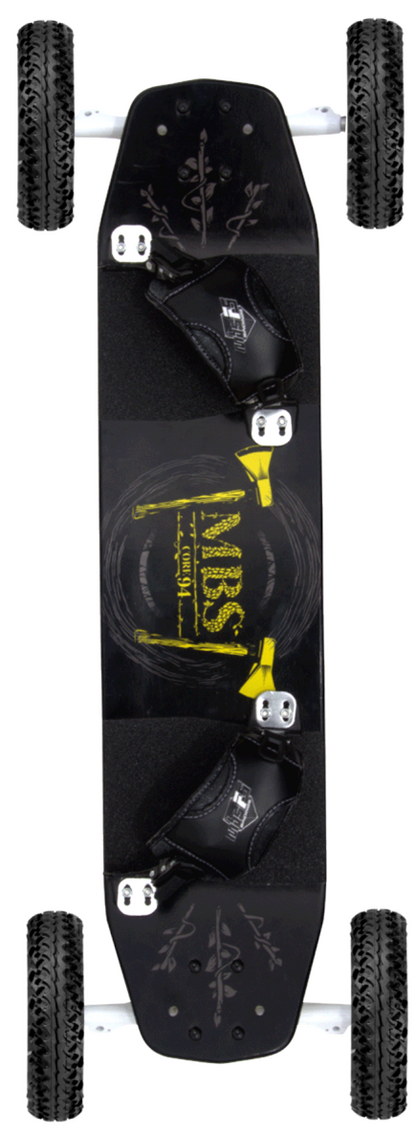

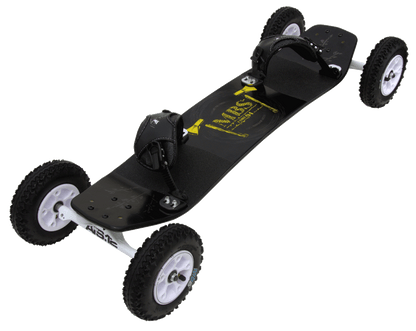

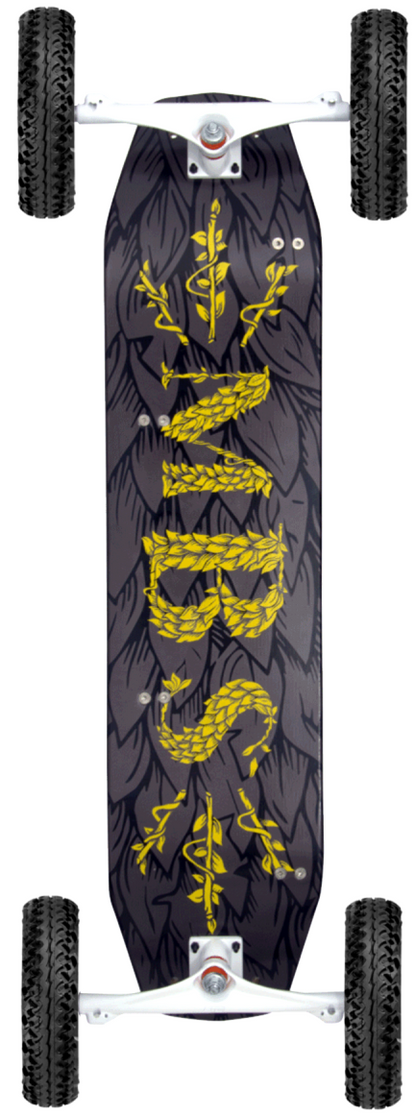

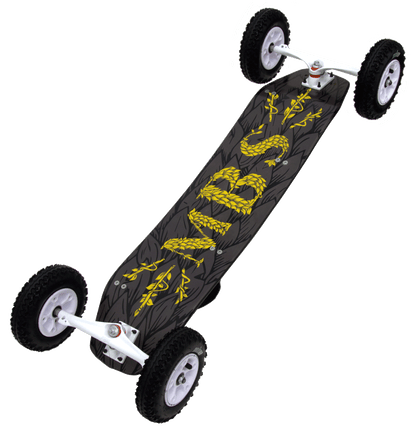

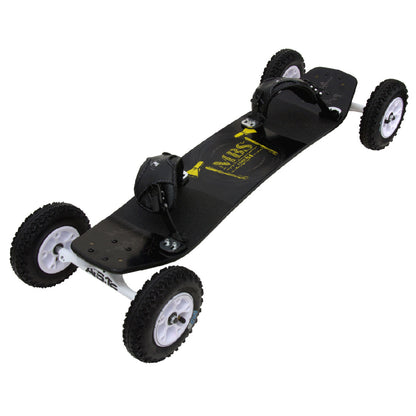

MBS Core 94 - Axe

MBS Core 94 - Axe

The Core 94 is the perfect choice for kiters and lighter mountainboarders looking for an all round versatile board.

--

The Core 94 is designed with kiters and lighter mountainboarders in mind. It is a lightweight and versatile board which will help you nail your first freestyle moves. For kiters - the lightweight design together with the grip provided by the T3 tyres make it the perfect choice.

WHATS NEW?

The Core 94 combines the Core 90 and 95 in one model and gets some critical upgrades. The most obvious at first glance is the improvement from the F2 Velcro binding to our F5 ratchet bindings. This is first Core board to ever come stock with any ratchet binding, let alone bindings as strong, comfortable, and adjustable as the new F5.

Less obvious is the upgrade to our new ATS.12 trucks which move from 9.5mm to 12mm axles. That really reduces the chance of bending an axle and allows for standard 28mm x 12mm bearings.

COMPONENTS

• Deck - Core 94 (Axe)


• Trucks - ATS.12


• Bindings - F5


• Tyres - T3


• Hubs - FiveStar


• Bearing - 12x28mm

TECH SPECS

•



  • Part Description - Core 94 (Axe)


  • Rider Style - Kite and Freestyle


  • Overall Weight - 5.9 (kg) / 13.0 (lb)


  • Overall Length - 108.0 (c) / 42.5 (in)


  • Axle to Axle Length - 88.0 (c) / 34.6 (in)


  • Deck Construction - Powerlam (Fiberglass, Maple)


  • Deck Stiffness - Stiff


  • Graphic Material - Maple


  • Grip Tape - 46 Grit - Alum. Oxide


  • Deck Tip Angle - 20


  • Deck Length - 94.0 (c) / 37. (in)


  • Deck Width - 22.0 (c) / 8.7 (in)


  • Deck Weight - 1.9 (kg) / 4.1 (lb)


  • Truck Type - ATS. 12


  • Truck Material - Die-Cast Alum. Hanger and Base; Cromoly axle


  • King Pin - CrMo


  • Suspension - Orange Bushing


  • Axle Width - 40.0 (c) / 15.8 (in)


  • Axle Diameter - 12mm (Solid)


  • Hub Type - FiveStar


  • Color - Black


  • Accepts Bearing Size (OD) - 28mm


  • Bearing - 12x28mm


  • Tyre Type - T3 (8") - 200x50


  • Tyre Color - Black


  • Binding Type - F5


  • Hardware Type - Black Zinc / Nickel


  • Grab Handle - Drilling Required


  • Brake Compatible - Yes


  • Brake Included? - No


  • Assembly - Wheels Off Component Pack


  • Overall Length with Matrix - 114.4cm


  • Overall Length with Vector - 109.1cm


  • Overall Length with ATS - 108.7cm
